Overview

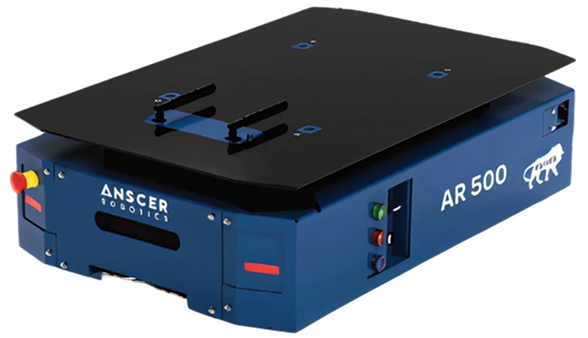

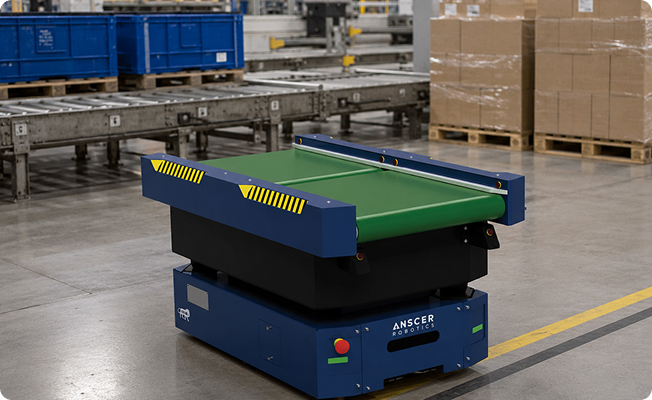

The AR 500 is a compact, flexible AMR that automates diverse material movement through interchangeable top modules, ensuring scalable, flexible intralogistics automation across facilities.

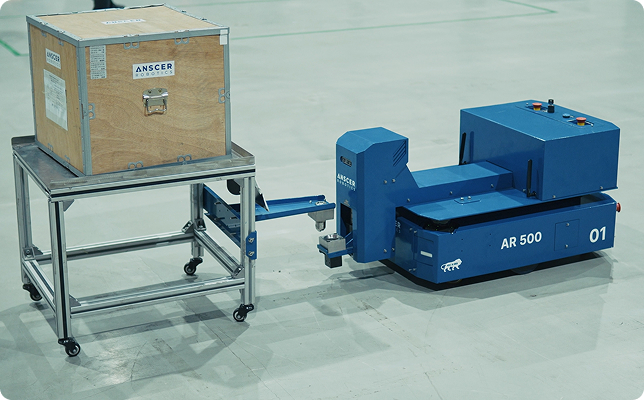

Tugging
Lifting
Tunneling
KEY applications
Tugging
Lifting
Tunneling
Key Specifications
METRIC
IMPERIAL
PAY-LOAD CAPACITY
500 kg
Navigation
SLAM Navigation
Safety Scanners
Pld cat. 3 Safety Scanners
DIMENSIONS
900 * 580 * 275 mm
Type of Payload
Suitable for handling pallets, trolleys, carts, and various unit loads
MAX SPEED
1.5 m/s
Accuracy
X,Y: 15 mm, Yaw: 1.5 degrees
BATTERY TYPE
LFP
Charging Time
1.5 hrs
BATTERY Runtime
8 Hrs
BATTERY Voltage
48 V
download Product Profile
Advantages
Choose the AR 500 to handle medium loads with one compact, adaptable platform that reduces complexity, improves throughput, and supports evolving material handling needs.
Automates repetitive material transport tasks to increase throughput, minimize delays, and ensure predictable logistics performance throughout operations.
.jpg)

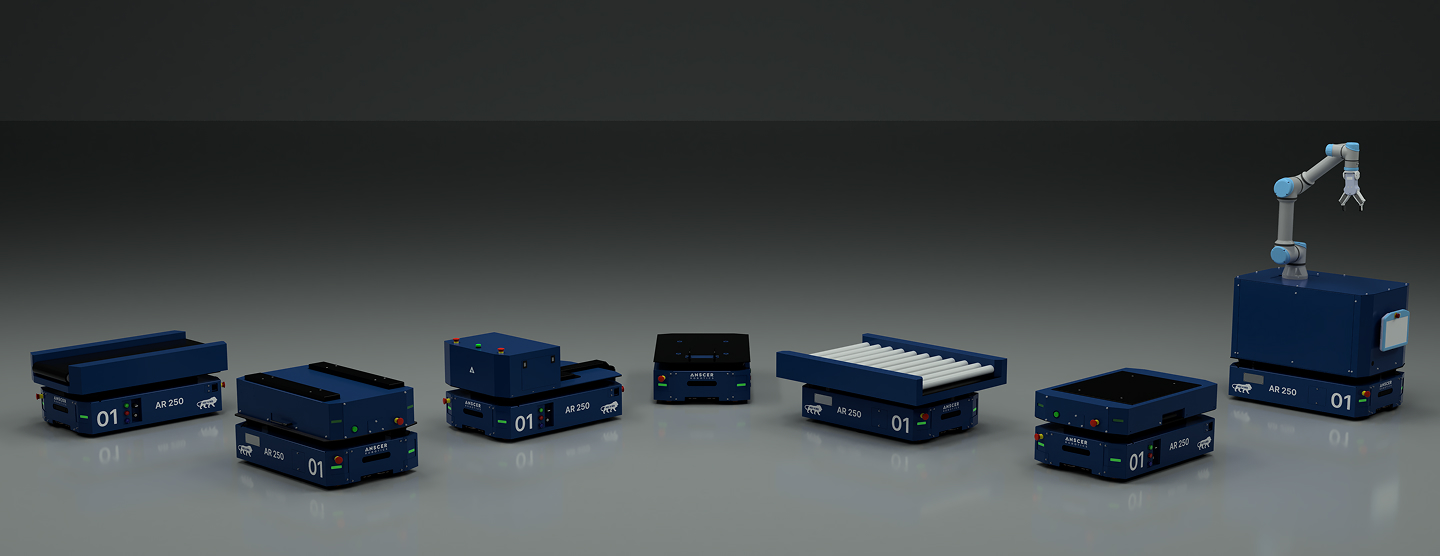

Supports interchangeable top modules that enable diverse workflows without deploying multiple dedicated robotic systems.
Expand automation progressively across facilities using a standardized platform designed for future operational requirements.
Eliminates non-value-added material movement, allowing operators to focus on higher-value production activities.
features
The AR 500 combines medium payload capacity with compact form factor and modular top modules, enabling flexible automation for diverse material handling applications and scalable facility-wide deployment.
Moves heavier loads efficiently across manufacturing and warehouse operations.
Supports diverse applications using one standardized robotic platform.
TALK TO AN EXPERT
Enables accurate positioning within tight and space-constrained environments.
Ensures controlled loading and unloading for secure material transfer.
applications
Designed to automate internal transport across warehouses, production floors, and distribution environments with safe and efficient autonomous navigation.

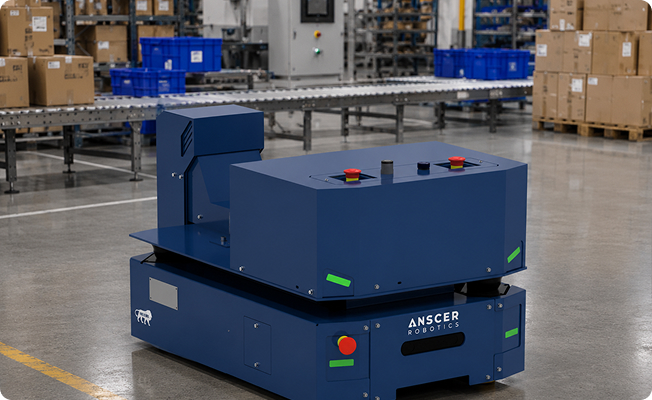

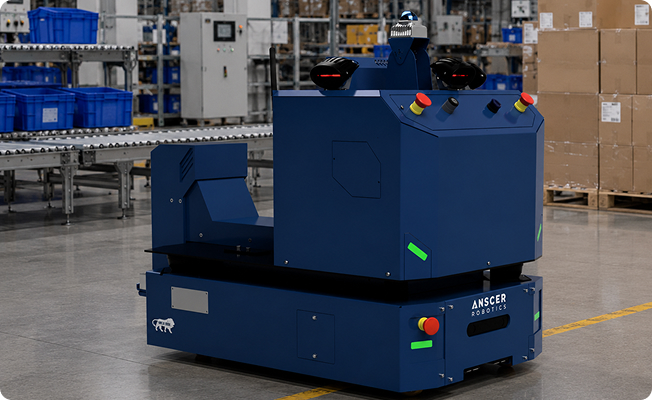

Efficient autonomous transport of trolleys across facilities.

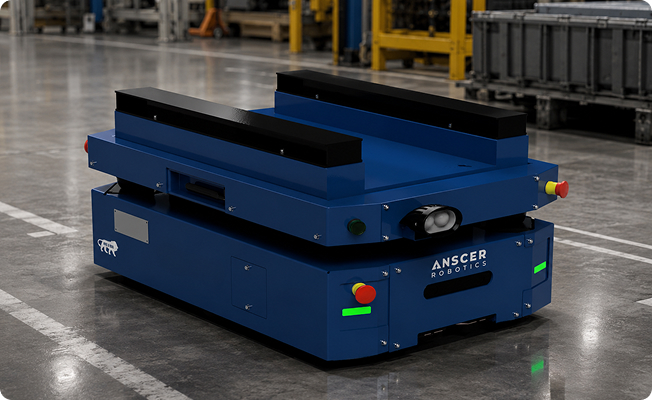

Supports safe and reliable pallet movement operations.
Autonomous trolley lifting and transport operations
Automated trolley material flow
We’ve heard it all — here’s what people are really asking behind the scenes.
The AR 500 handles payloads up to 500 kg and is suited for medium-duty applications trolley and shelf transport, conveyor-based carton and tote transfer, cobot integration for mobile manipulation, tugger-based material flow, and custom unit load handling. It fits facilities where loads are too heavy for lighter AMRs but don't yet require the heavier AR 650 or AR 1250.
Yes. The AR 500 supports a Cobot Integration Module that enables mobile manipulation via third-party cobot integration. This allows a cobot arm mounted on the AR 500 to travel autonomously between workstations and perform pick, place, or machine tending tasks at each stop effectively multiplying the cobot's utility across your facility.
Tasks are assigned to the AR 500 through ANSCER Fleet, which receives instructions from your WMS or ERP via API, or through manual triggers from operators. The robot navigates autonomously to its pickup and drop-off points, handles the task, and reports completion back to the fleet system in real time.
Yes. The AR 500 is designed for mixed-traffic environments. Its onboard sensors detect and avoid people, forklifts, and other moving equipment dynamically. Unlike AGVs, it does not stop and wait for a clear path — it reroutes in real time, keeping material moving even in busy facilities.
