Overview

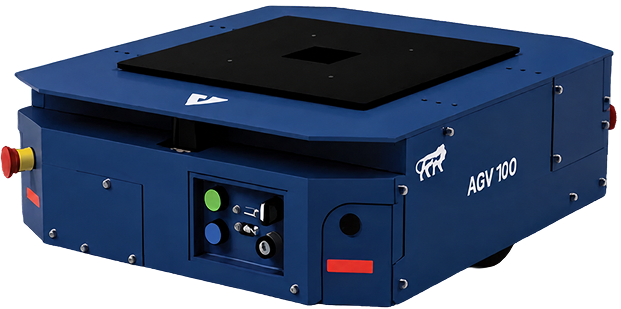

The AGV 100 is a compact QR-guided vehicle designed for efficient point-to-point material transport, delivering reliable, predictable, and high-throughput movement across warehouses and manufacturing facilities.
Tugging
Lifting
Tunneling
KEY applications
Lifting
Sorting
Key Specifications
METRIC
IMPERIAL
PAY-LOAD CAPACITY
100 kg
Navigation
QR Navigation
Safety Scanners
Pld cat. 3 Safety Scanners
DIMENSIONS
680 * 600 * 235 mm
Type of Payload
Bins and Totes
MAX SPEED
2 m/s
Accuracy
X,Y: 10 mm, Yaw: 1.5 degrees
BATTERY TYPE
LFP
Charging Time
1.5 hrs
BATTERY Runtime
8 Hrs
BATTERY Voltage
48 V
download Product Profile
Advantages
Choose the AGV 100 to automate repetitive transport tasks with simple navigation, optimized routing, and dependable material movement performance.

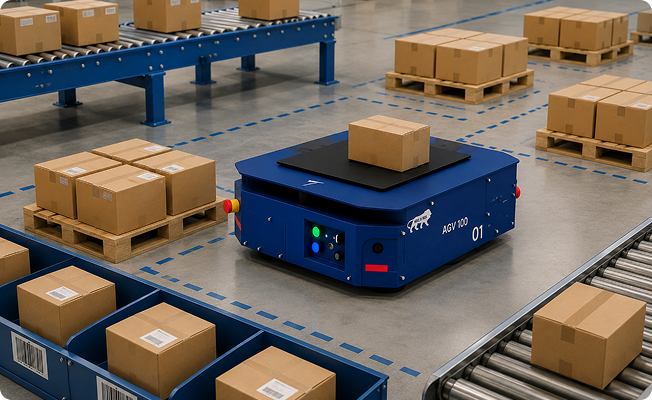

Moves materials directly between locations through fixed routes, minimizing transit time and improving operational efficiency.
.jpg)
Ensures consistent and predictable movement using proven navigation technology for repetitive transport applications.
Accelerates material flow by automating routine transport activities across facilities.
Minimizes operator involvement in repetitive transport tasks, improving productivity and workplace efficiency.
features
The AGV 100 combines compact design with QR-guided navigation to deliver fast, reliable, and efficient point-to-point material transport for high-throughput operations.

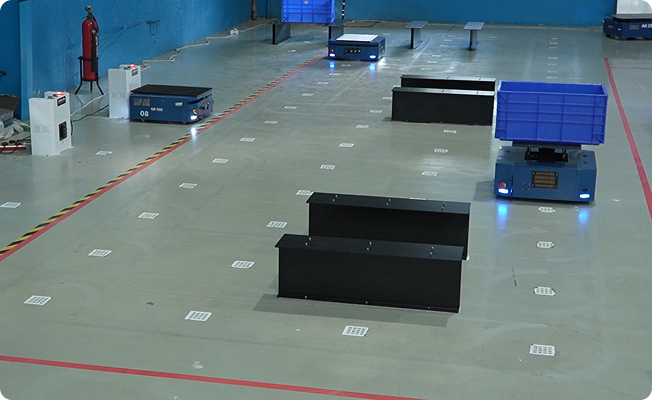

Follows predefined routes with reliable positioning accuracy.
Compact design enables efficient movement within existing layouts.
TALK TO AN EXPERT
Designed for operating at high speed for rapid material transport across warehouse layouts.

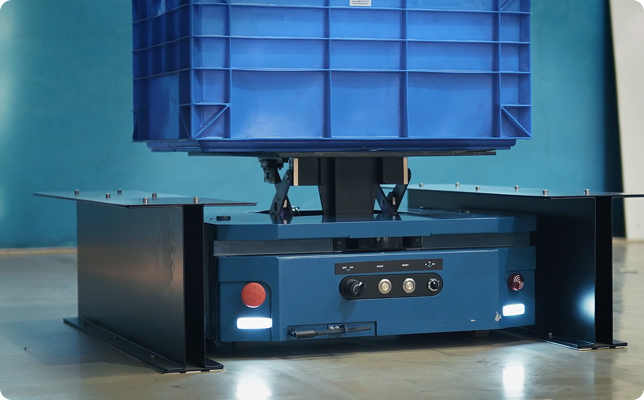

Enables reliable positioning at designated pickup and drop-off points.
applications
Designed to automate internal transport across warehouses, production floors, and distribution environments with safe and efficient autonomous navigation.

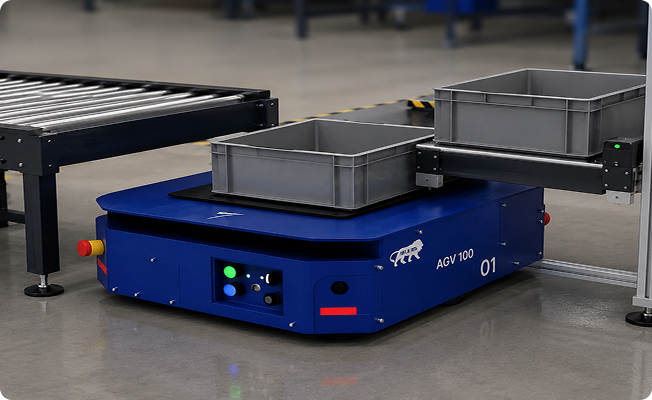

Enable easy bin movement between storage, workstations, and processing to maintain workflow.
Automate replenishment by timely delivering totes and bins to picking zones, assembly lines, and fulfillment stations.
Streamline order fulfillment by moving materials between sortation and consolidation zones, cutting manual handling and processing time.
We’ve heard it all — here’s what people are really asking behind the scenes.
The AGV uses QR-based navigation, which means it follows defined paths using QR codes placed on the floor. This gives it a highly predictable, repeatable material flow ideal for high-throughput operations where routes are fixed and consistent performance matters more than flexibility. AMRs like the AR series use SLAM navigation and can reroute dynamically. The AGV 100 is the right choice when you need speed, simplicity, and reliable point-to-point transport on known routes.
The AGV100 runs for up to 8 hours on a single charge and recharges fully in 3 hours. It also supports opportunity charging topping up autonomously during task intervals which means it can sustain continuous operation across shifts without scheduled downtime.
The AGV 100 is ideal for high-throughput facilities with fixed, repetitive point-to-point transport routes like warehouses or distribution centres where material flow is predictable and consistent. If your operation runs the same routes repeatedly across shifts and needs reliable, high-speed delivery without variability, the AGV100 is built for exactly that.
The AGV 100 navigates using QR codes placed on the floor. Maintenance is straightforward: periodically inspect the QR codes for wear, dirt, or damage and replace them if they become unreadable. Keeping the floor around the QR codes clean and free of obstructions ensures consistent read accuracy and reliable performance. The QR sensor on the robot itself requires no special servicing beyond routine cleaning.
Access detailed specifications, features, and performance data for the AGV 100 in our comprehensive product datasheet.
